LF Electro Ohmic Quasi-Stat. gives unexpected current density

Scheduled Pinned Locked Moved Simulations & Solvers
lf quasi-staticohmic quasistatcurrent densitylow frequency
1 Posts 1 Posters 109 Views
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • C Offline
    C Offline
    Cindy645
    wrote on last edited by Cindy645
    #1

    Hi all! I use the following very simple structure to test whether I am using the LF Ohmic Quasi-Static Solver correctly. The voltage comes out as expected but the current (density) is incorrect. I have these three electrodes of the same radius (1mm) stacking together (touching each other) in an electrode-cylinder-electrode configuration. I want to apply to a 2V (+1V top, -1V bottom) to the two silver electrodes and achieve a 1 kA current through. So I chose the cylinder material (copper) and length such that the resistance is 2 mOhm.

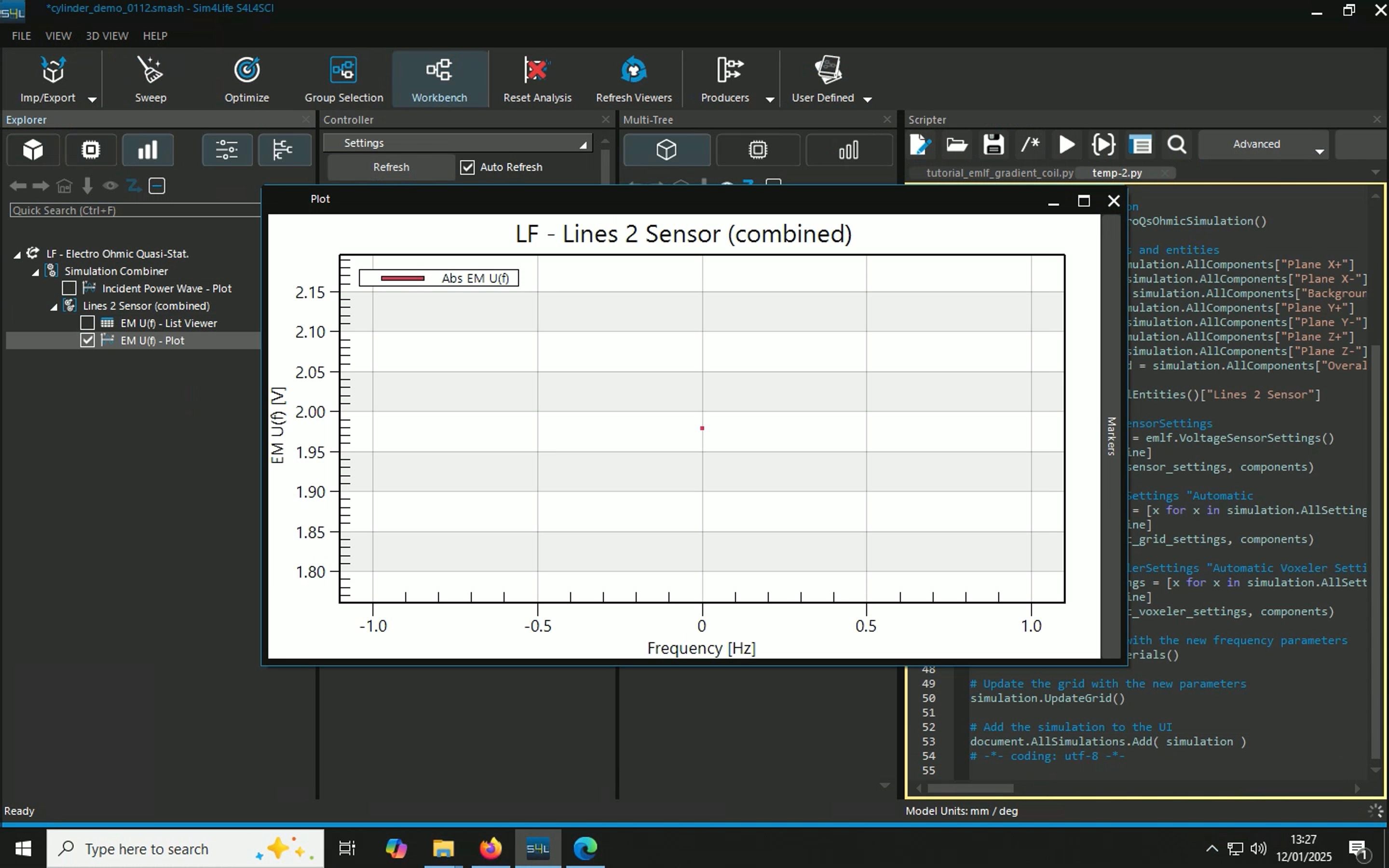

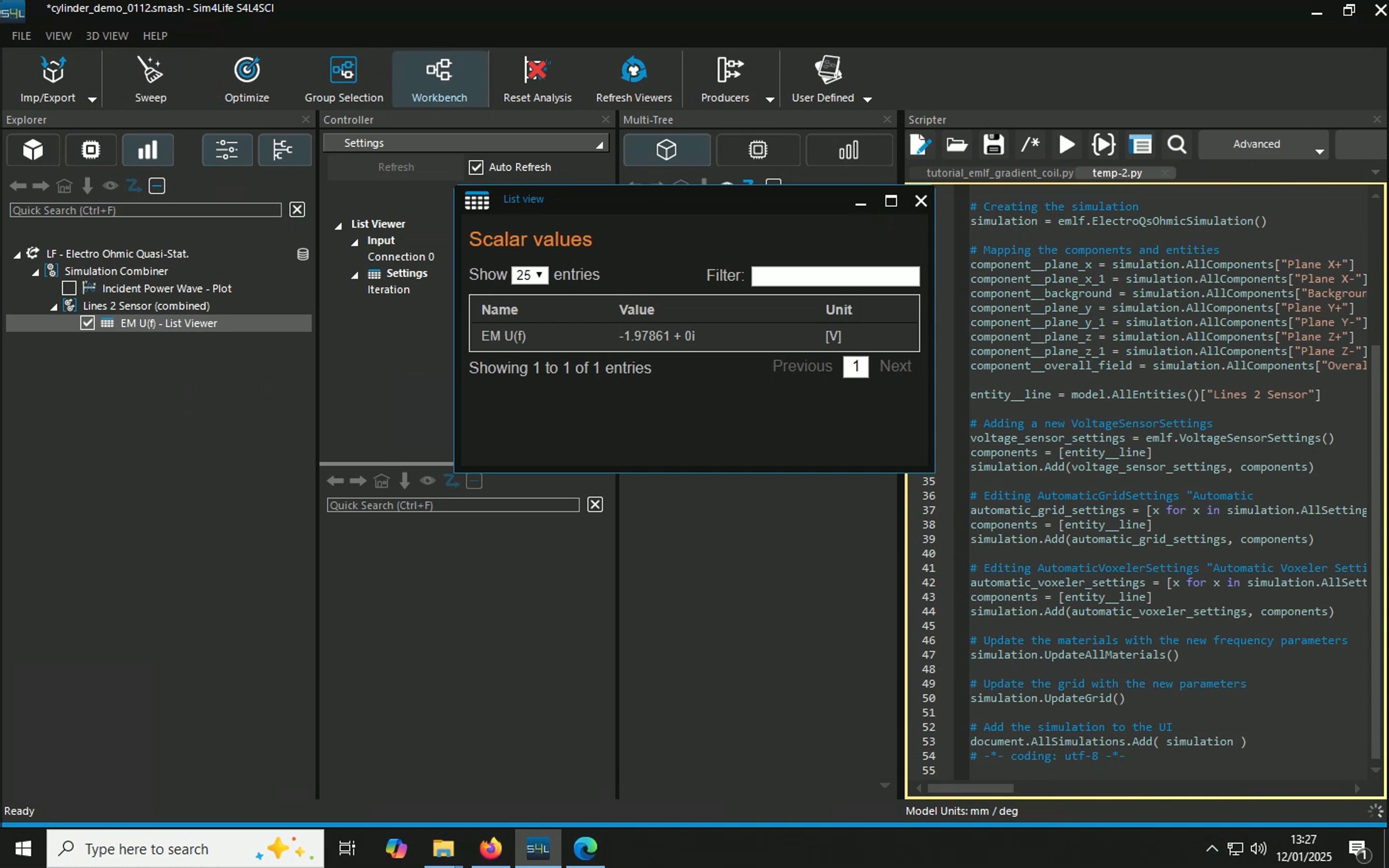

    After running the simulation, where I place a line as voltage sensor (it runs from 2mm offset from the top electrode to 2mm offset from the bottom electrode, in the centre), it gives a value of -1.9786V as expected.
    When I combine the J(x,y,z,f0) from the overall field and a plane I created and use flux evaluator to measure total current density as described here https://forum.zmt.swiss/topic/24/compute-the-total-current-flowing-between-two-electrodes-in-an-electro-quasistatic-lf-simulation, unexpected resutls occur. I tried two different planes and they gave different results::

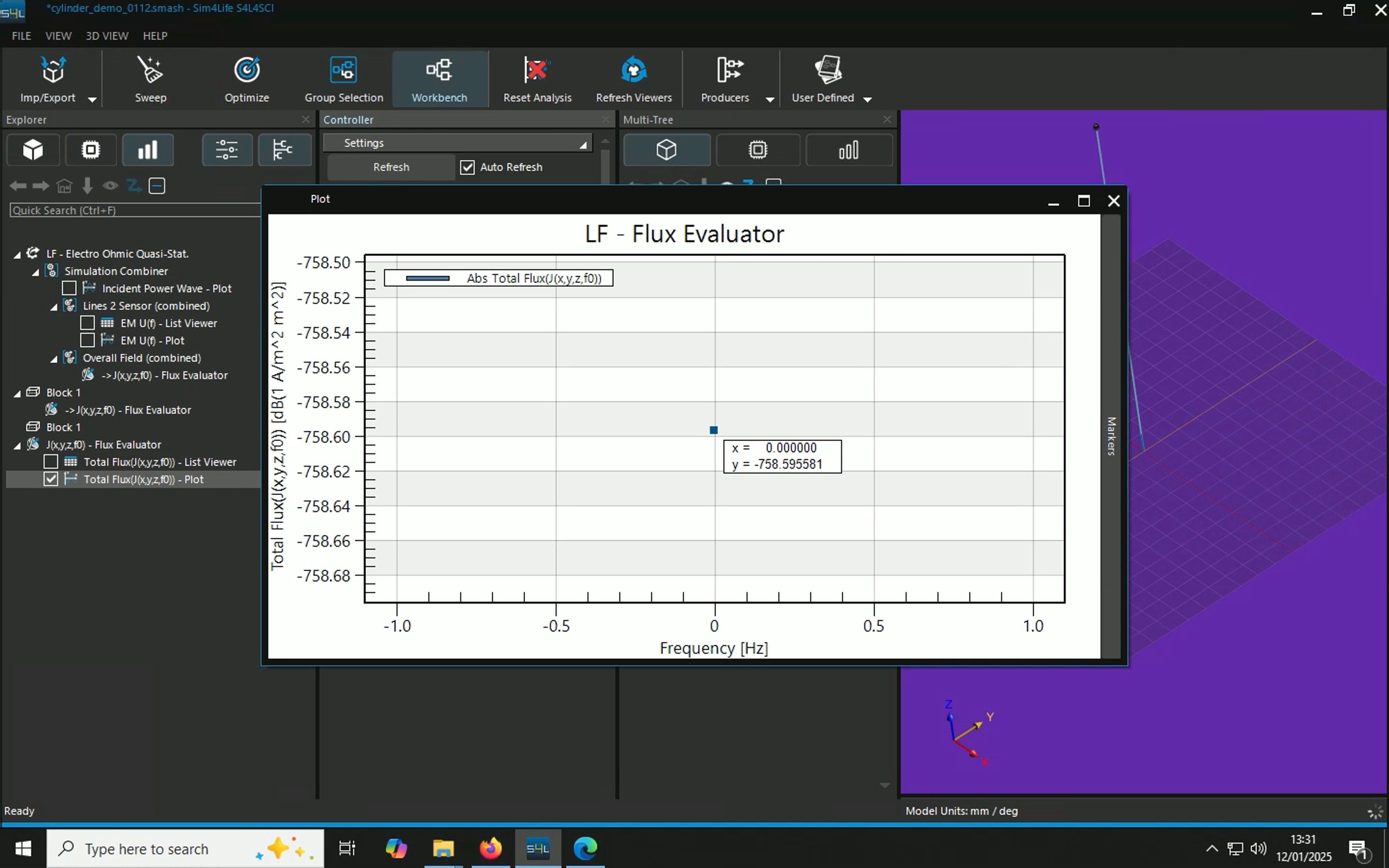

    1. A block with 0mm thickness and 1m x 1m in area in the middle of the cylinder parallel to the electrodes, result: 1 A/m^2, multiply by the area gives 1A

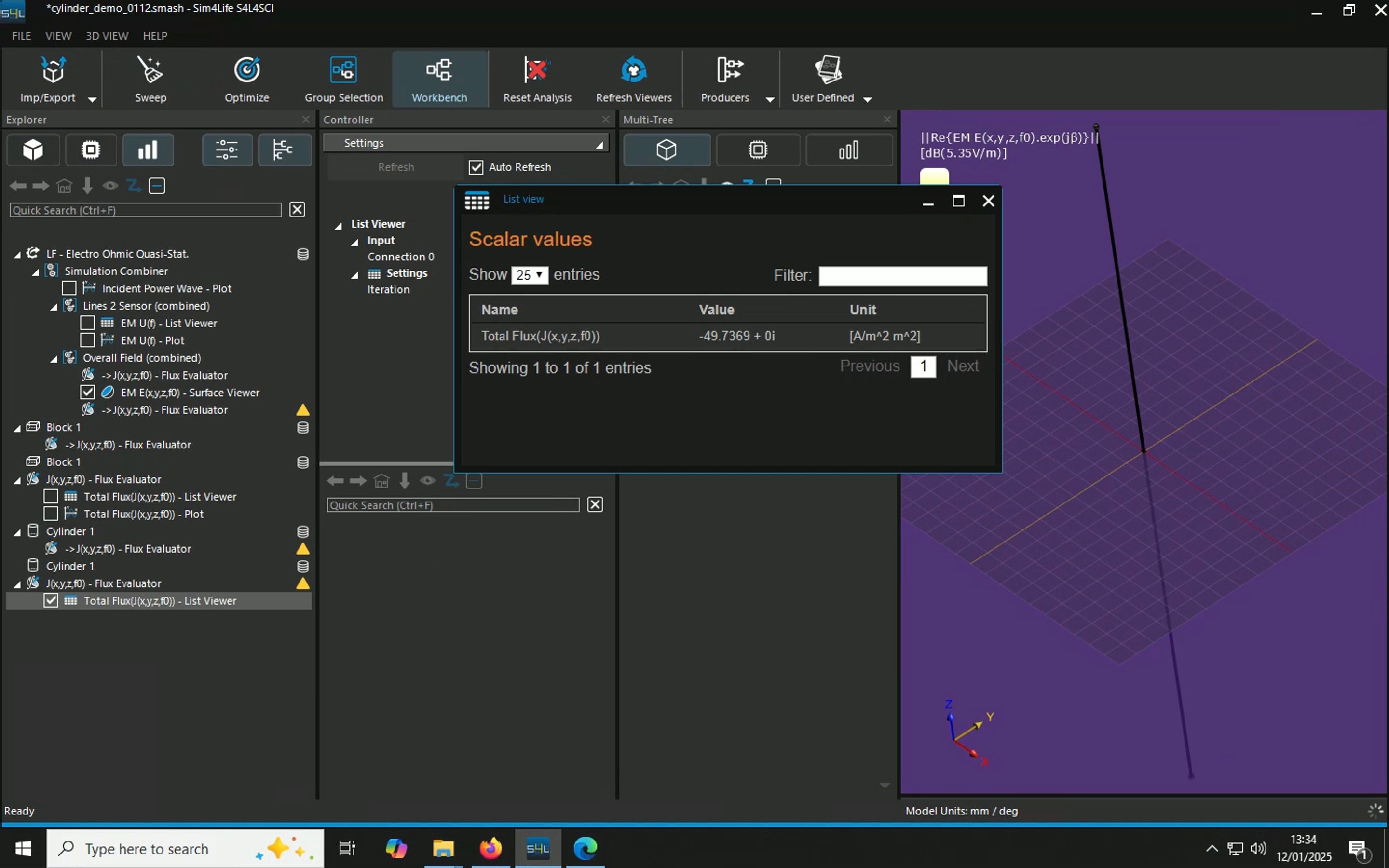

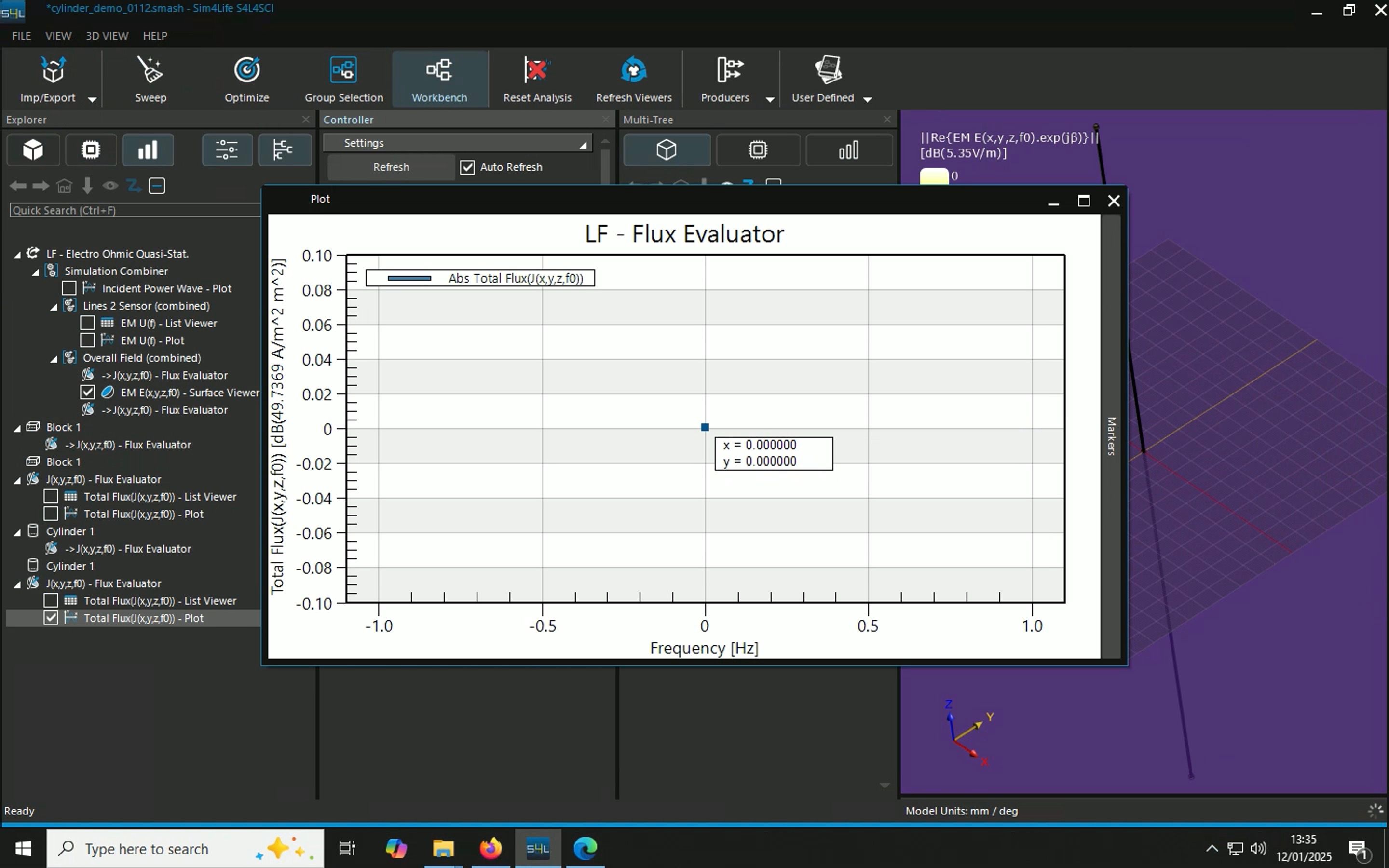

    2. A cylinder with 0mm thickness and 1mm in radius in the middle of the cylinder parallel to the elctrodes, resutls: 49.7369 A/m^2, multiply by the area gives 0.156mA
      (P.S. why the current density has a unit of [A/m^2 m^2]?)

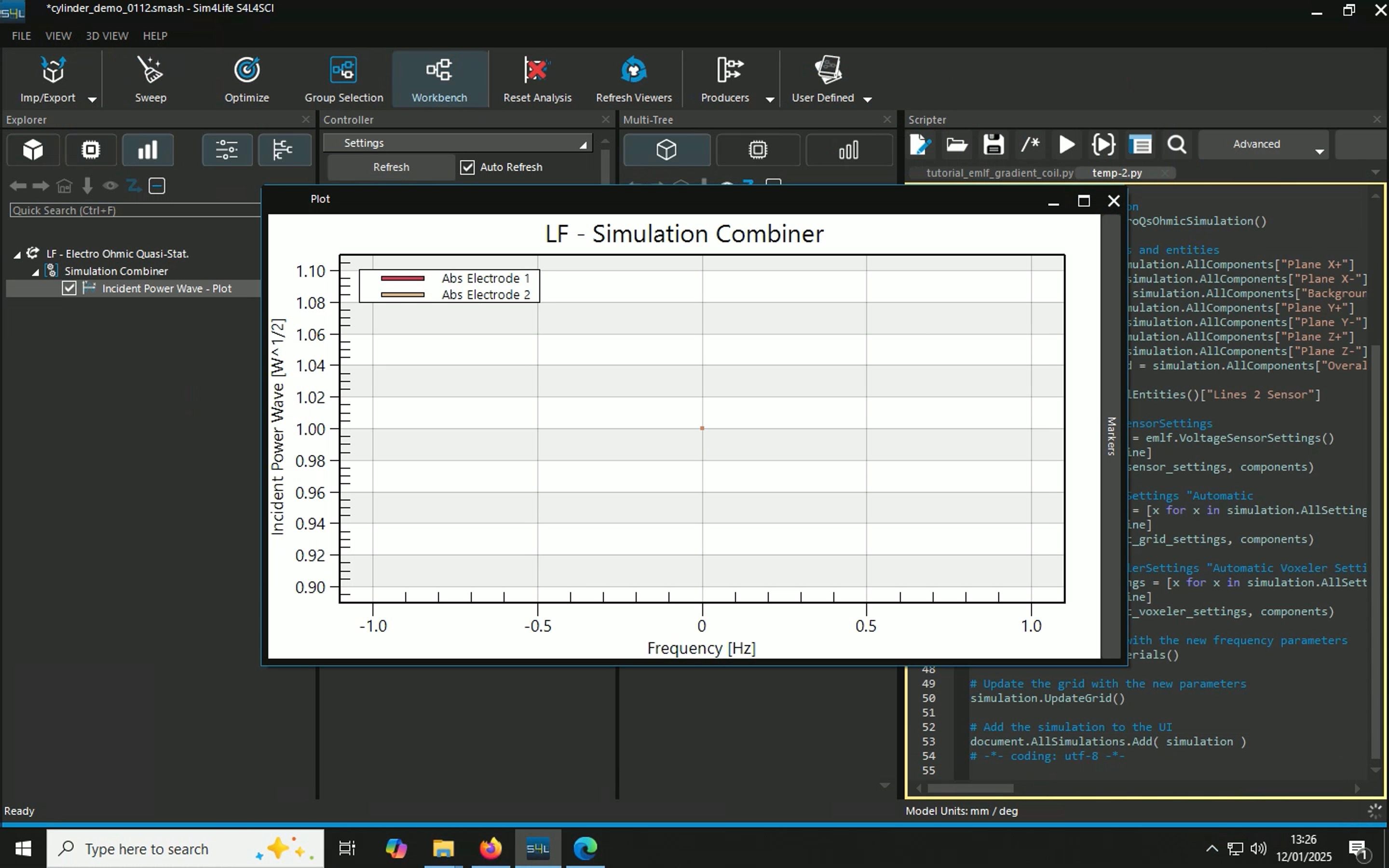

    Model, Simulation and Analysis details are summaried in the screenshots attached. IMG_5162.jpg IMG_5163.jpg IMG_5164.jpg Screenshot 2025-01-12 at 21.26.50.jpg Screenshot 2025-01-12 at 21.27.16.jpg Screenshot 2025-01-12 at 21.27.32.jpg Screenshot 2025-01-12 at 21.31.17.jpg Screenshot 2025-01-12 at 21.34.49.jpg Screenshot 2025-01-12 at 21.35.28.jpg
